Non-Invasive
Easy Operation
Objective Assessment
By measuring respiration of embryo, quantitative evaluation of embryo is possible.
Non-Invasive
By scanning a microprobe (tip diameter of approximatelyφ5μm) up and down, the system electrochemically measures the concentration gradient of dissolved oxygen from the vicinity to offshore of the embryo placed in an inverted conical well filled with measurement solution and calculates the embryo’s respiratory rate using a theoretical formula.
There is no effect on embryo viability or development because it can measure non-invasively without touching the embryo directly.
A general HTF medium can be used as the measurement solution.
There is no effect on embryo viability or development because it can measure non-invasively without touching the embryo directly.
A general HTF medium can be used as the measurement solution.
Easy Operation

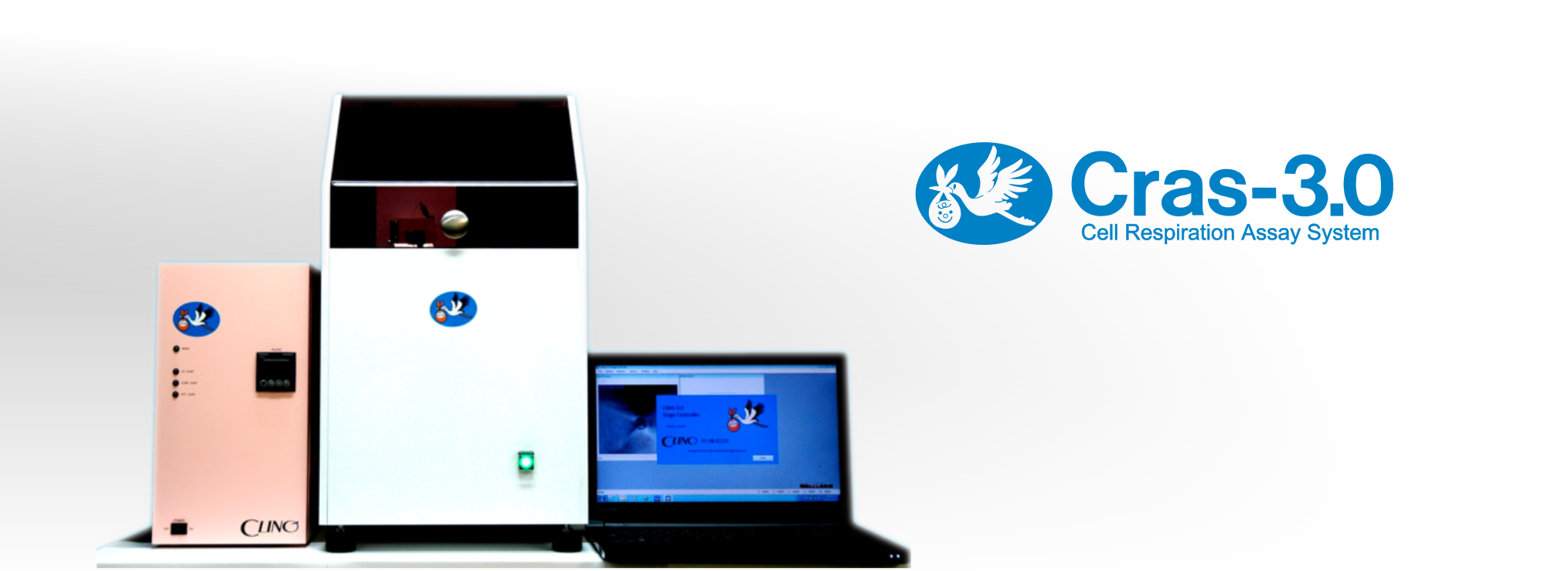

Operation of CRAS-3.0 is done using specialized software. Its high-performance camera allows the user to easily perform high-precision operation in units of 1μm minimum by the click of a mouse while checking the position of the embryo and the microprobe in real time. Since all movement distances can be confirmed by numerical values, accurate and highly reproducible measurement is made possible.

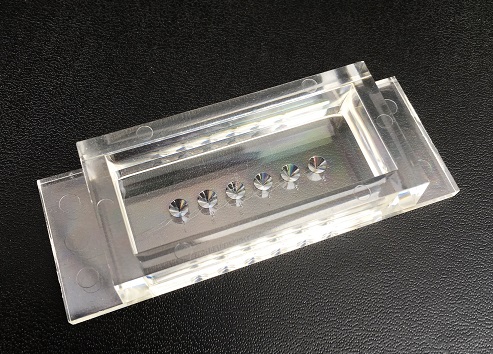

The specially designed plate used for the measurement has 6 wells to set the embryo, and the respiration rate of up to 5 (*1) embryos can be measured continuously.
*1 One well must be measured empty for comparison reference.
*1 One well must be measured empty for comparison reference.
Objective Assessment

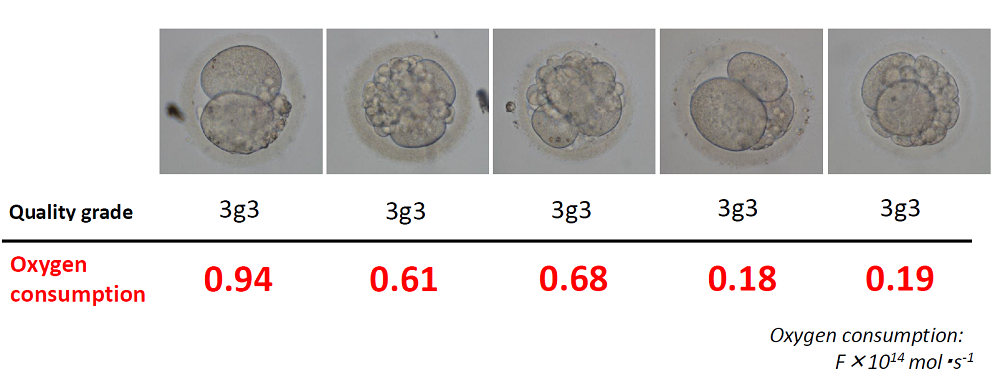

CRAS can quantitatively evaluate embryo respiration. An objective index is added to the conventional method of morphological observation of the embryo, which contributes to improvement of evaluation accuracy.
*This product is not a medical device.
*Please note that specifications are subject to change for improvement without prior notice.
